| X96Q (H313) |
| CPU |
Allwinner H313 Quad Core ARM Cortex A53 |
| GPU |
G31 OPenGL ES3.2 |
| Memory |
DDR3：1GB (Option: 2GB) |
| Flash |
eMMC：8GB(Option:16GB ) |

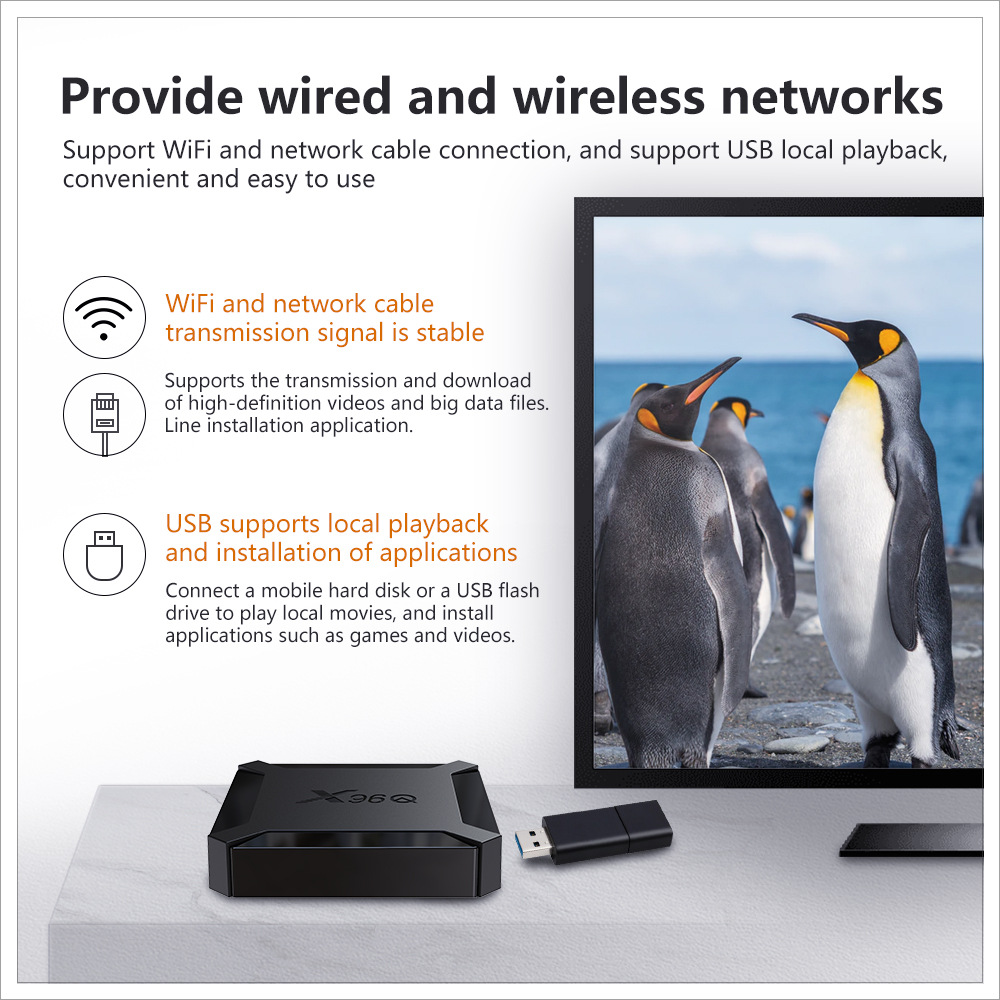

| WiFi |
IEEE 802.11 b/g/n |
| Moudle |
Plastic : Black Color |
| I/O |
1*HDMI |
4K*2K UHD Output,HDMI 2.0A |
| 1*AV OUT |
480i/576i standard definition output |
| 2*USB |
1* USB Host Port ,1*USB Device |
| 1*IR Reciver |
Remote Reciver Connect |
| 1*RJ45 |
Ethernet Interface |
| 1*TF CARD |
Support 4GB/8GB/16GB/32GB/64GB |
| Power |
DC 5V/2A；LED indicator，Working：Blue; Standby：Red |
| Software |
| OS |

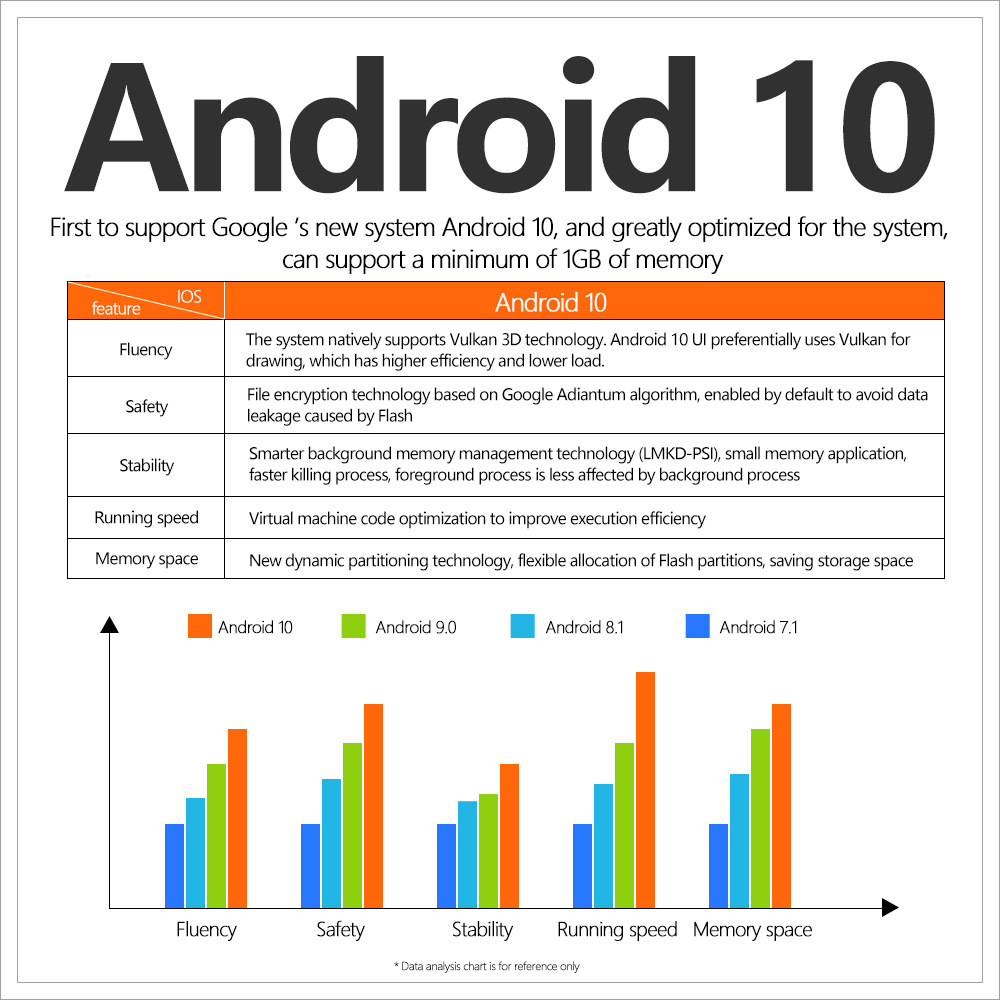

Android 10.0 |
| Video |
• Supports video decoding up to 4K@60fps
• Supports multi-formats:
- H.265 Main10@L5.1 up to 4K@60fps
- VP9 Profile 2 up to 4K@30fps
- AVS2 JiZhun 10bit Profile up to 4K@30fps
- H.264 BP/MP/HP@L4.2 up to 4K@30fps
- H.263 BP up to 1080p@60fps
- MPEG-4 SP/ASP@L5 up to 1080p@60fps
- MPEG-2 MP/HL up to 1080p@60fps
- MPEG-1 MP/HL up to 1080p@60fps
- Xvid up to 1080p@60fps
- Sorenson Spark up to 1080p@60fps
- VP8 up to 1080p@60fps
- AVS/AVS+ JiZhun Profile up to 1080p@60fps
- WMV9/VC1 SP/MP/AP up to 1080p@60fps
- JPEG HFIF file format up to 45MPPS
H.264 BP/MP/HP
• H.264 supports I/P frame, and only supports single reference frame
• MJPEG/JPEG baseline
• Maximum 16-megapixel(4096 x 4096) resolution for H.264 encoding
• H.264 encoding capability: 1080p@60fps
• JPEG snapshot performance of 1080p@60fps independently
• Supports the constant bit rate(CBR)ariable bit rate(VBR) bit rate control mode, ranging from 256kbit/s to
100Mbit/s
• Encoding of eight regions of interest(ROIs) |
| Audio |
Supports MP3, AAC, WMA, RM, FLAC, Ogg
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
• Two DAC channels
• Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR)
• One Audio HUB, supporting internal mixing function
• Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier)
• Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode
• I2S mode supports 8 channels, and 32-bit/192kbit sample rate
• I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate
• One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs
• Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones |
| Image |
HD JPEG、BMP、GIF、PNG、TIF |
| Language |
English French German Spanish Italian etc multilateral languages |
| Appliactions |
| Online |
Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. |
| Apps |
Apps download freely form android market、amazon app store etc. |
| Medium |
Local Media playback,Support HDD, U Disck ,TF Card . |
| Others |
Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard |
